How to Wire a HH, 1 x Volume, 1 x Tone, 3 Way Switch Guitar (Download PDF)Updated 25 days ago

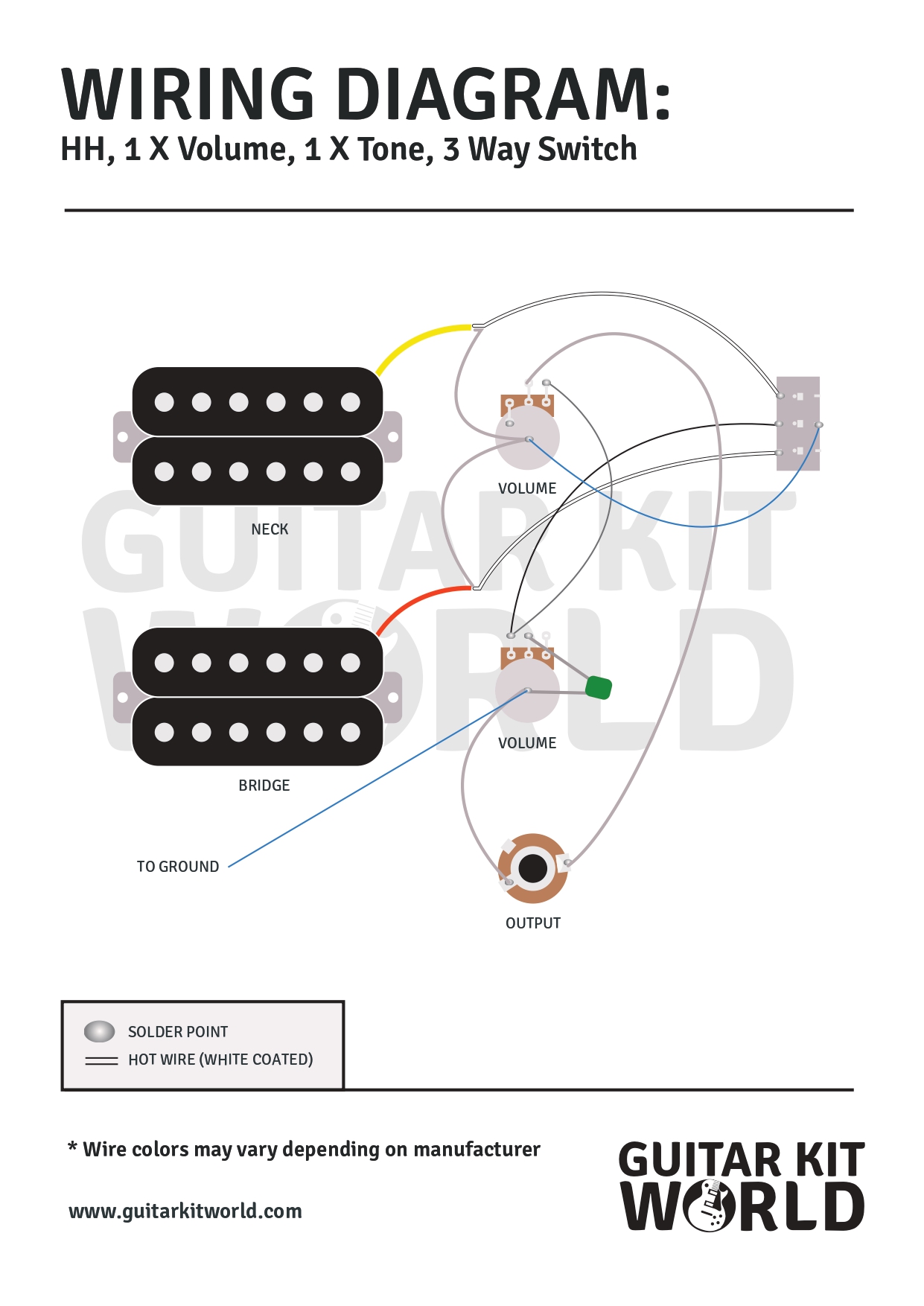

Here are wiring diagrams for a HH, 1 x Volume, 1 x Tone, 3 Way Switch guitar:

• HH, 1 x Volume, 1 x Tone, 3 Way Switch (Download PDF)
• HH, 1 X Volume, 1 X Tone, 3 Way Switch – Version 2 (Download PDF)

To solder it up, pair the diagram with our step-by-step guide (with short videos): Electric Guitar Wiring for Kit Guitars.

Want to understand how electric guitars work first? Check out this article: How Do Electric Guitars Work.

If you’ve ever wondered how guitar pickups work or the differences between pickup types, this article will clear up the mystery: Pickups for DIY Guitar Kits
