How to Wire a 2 x Single Coil, 1 x Volume / 1 X Tone, 3 Way Selector Guitar (Download PDF)Updated a day ago

Here is a wiring diagram for a 2 x Single Coil, 1 x Volume / 1 X Tone, 3 Way Selector (Download PDF) guitar.

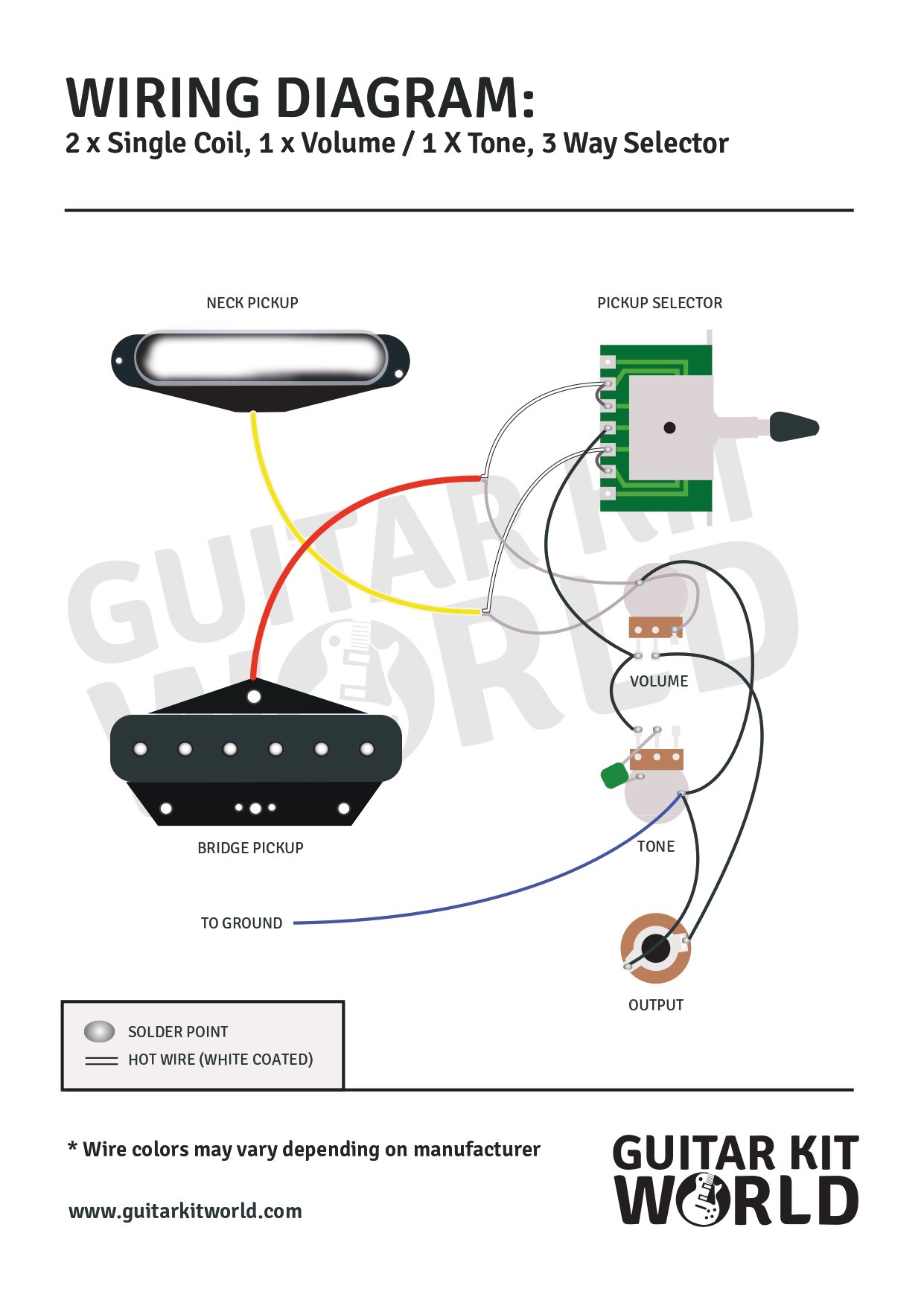

Version A:

Version B:

To solder it up, pair the diagram with our step-by-step guide (with short videos): Electric Guitar Wiring for Kit Guitars.

Want to understand how electric guitars work first? Check out this article: How Do Electric Guitars Work.

If you’ve ever wondered how guitar pickups work or the differences between pickup types, this article will clear up the mystery: Pickups for DIY Guitar Kits
